Hardware Specifications

Vendor/Brand	ODI
Model	DFP-34G-2C2
Chipset	Realtek RTL9601D
Flash	8 MB
RAM	64 MB
System	Linux (Luna SDK 1.9)
SFP interfaces	HSGMII
Optics	SC/UPC
IP address	192.168.1.1
Web Gui	✅ user admin, password admin
SSH	✅ user admin, password admin
Telnet
Serial
Form Factor	miniONT SFP

Note

SSH uses an outdated set of algorithms/ciphers, you can connect using the following command:

ssh -oKexAlgorithms=+diffie-hellman-group1-sha1 -oCiphers=+3des-cbc -oHostKeyAlgorithms=ssh-rsa admin@192.168.1.1

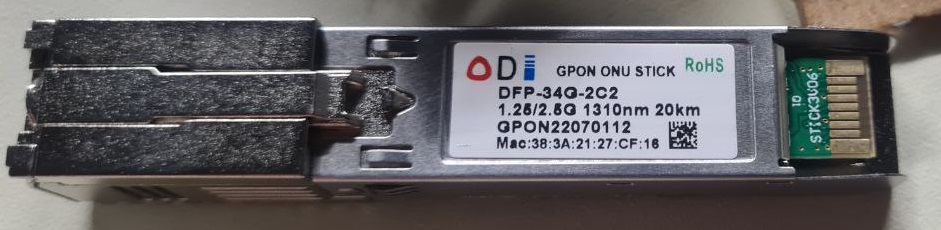

ODI Realtek DFP-34X-C2C

List of firmwares and files

• Firmware repository by Anime4000

The recommended versions are M114_sfp_ODI_Vlan_220414.tar, M114_sfp_ODI_hybrid_220527.tar or M114_sfp_ODI_hybrid_220916.tar, as these have working VLAN translation.

The firmwares are the same of the ODI Realtek DFP-34X-2C2, see that page for the SFU/HGU type of each firmware: switching between a SFU and an HGU firmware requires a factory reset and a new MAC key.

MAC key

From the firmware V1.0-220304 onwards, changing ELAN_MAC_ADDR requires a matching MAC_KEY, the MD5 of hsgq1.9a followed by the MAC address in uppercase^[1]:

echo -n "hsgq1.9aFFFFFF000000" | md5sum
46f4ea2e3f18ba3bc1f2671b5f7e1f62  -
flash set ELAN_MAC_ADDR FFFFFF000000
flash set MAC_KEY 46f4ea2e3f18ba3bc1f2671b5f7e1f62

List of partitions

dev	size	erasesize	name
mtd0	00040000	00001000	"boot"
mtd1	00002000	00001000	"env"
mtd2	00002000	00001000	"env2"
mtd3	0003c000	00001000	"config"
mtd4	0014c000	00001000	"k0"
mtd5	00274000	00001000	"r0"
mtd6	0014c000	00001000	"k1"
mtd7	00274000	00001000	"r1"
mtd8	00001000	00001000	"Partition_008"
mtd9	00001000	00001000	"Partition_009"
mtd10	00001000	00001000	"Partition_010"
mtd11	00001000	00001000	"Partition_011"
mtd12	0014c000	00001000	"linux"
mtd13	00274000	00001000	"rootfs"

This stick supports dual boot.

k0 and r0 respectively contain kernel and firmware of the first image, while k1 and r1 contain kernel and firmware of the second one.

Serial

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the top surface: it's near the SFP header. TX, RX and ground pads need to be connected to a USB2TTL adapter supporting 3V3 logic.

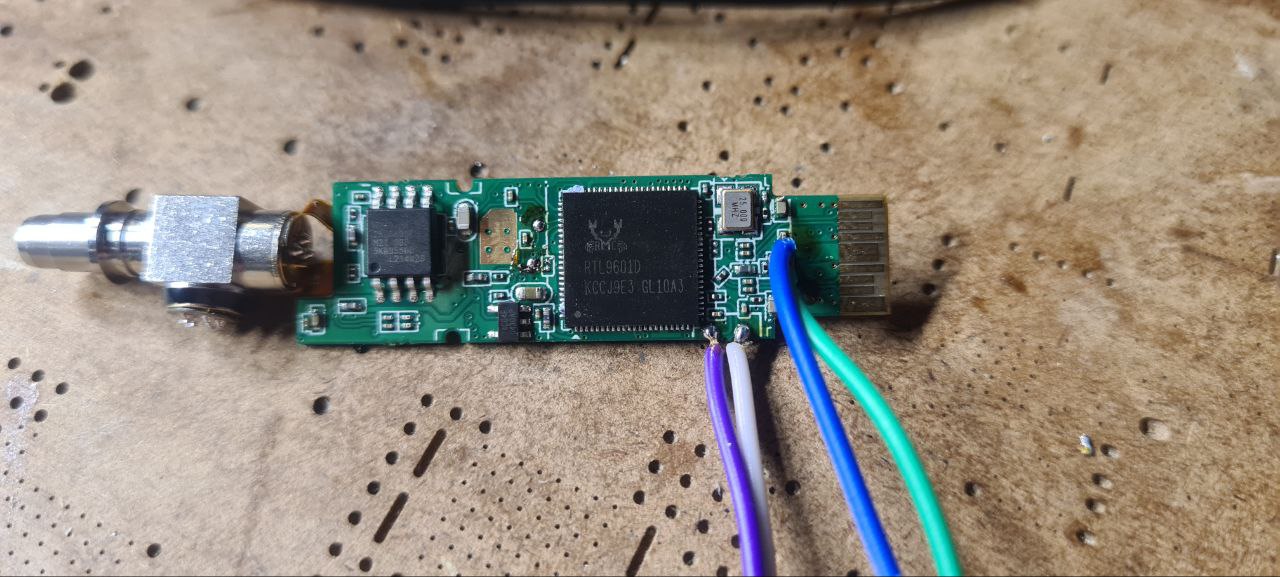

DFP-34X-2C2 TTL Connection

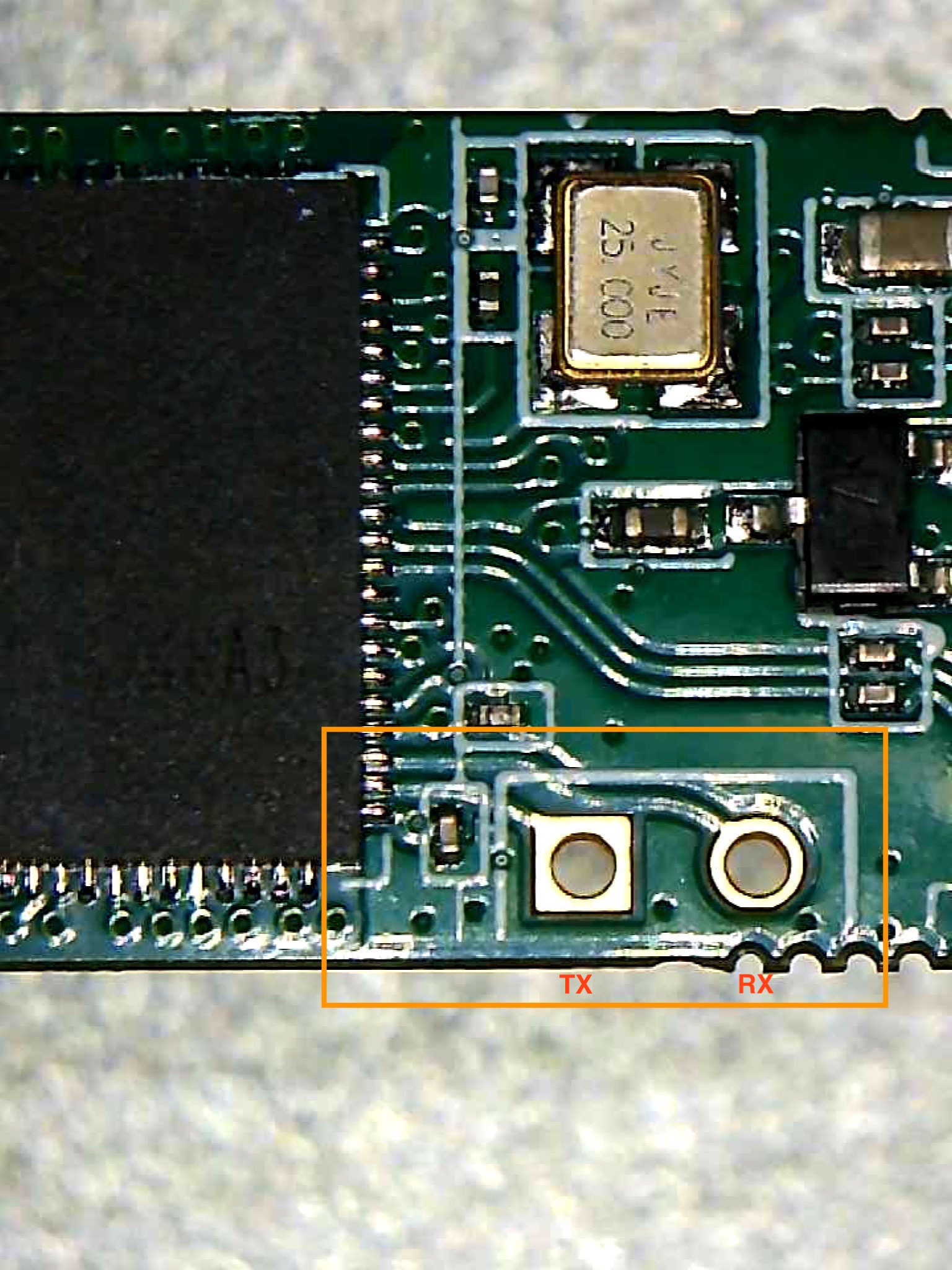

DFP-34X-2C2 TTL Pin

Note

Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.

Useful files and binaries

Useful files

• /var/config/lastgood.xml - Contains the user portion of the configuration

• /tmp/omcilog - OMCI messages logs (must be enabeled, see below)

Useful binaries

• flash - Used to manipulate the config files in a somewhat safe manner
• xmlconfig - Used for low-level manipulation of the XML config files. Called by flash
• nv - Used to manipulate nvram storage, including persistent config entries via nv setenv/nv getenv
• omcicli - Used to interact with the running OMCI daemon
• omci_app - The OMCI daemon
• diag - Used to run low-level diagnostics commands on the stick

GPON ONU status

Getting the operational status of the ONU

diag gpon get onu-state

Querying a particular OMCI ME

# omcicli mib get MIB_IDX

The list of the MEs is in GPON MIB, and the most useful ones to check the provisioning received from the OLT are in Most useful MEs to check the provisioning.

To dump all the MEs at once^[2]:

for ME in 2 5 6 7 11 24 45 47 49 50 52 78 79 83 84 89 130 131 133 134 136 137 148 157 158 171 240 244 245 248 249 250 253 255 256 257 262 263 264 266 267 268 272 273 274 277 278 280 281 284 287 296 298 307 308 309 310 311 312 321 322 329 330 334 340 341 65282 65294 65408 65527 65528 65529 65530 65531; do echo "MIB: $ME"; omcicli mib get $ME; done

To dump the most useful MEs at once:

for ME in 6 7 11 84 131 171 256 257 262 263 264 277 309 329; do echo "MIB: $ME"; omcicli mib get $ME; done

Getting the GEM ports and the flows

# diag gpon show us-flow
============================================================
    GPON ONU MAC U/S Flow Status
Flow ID | GEM Port | Type | TCont
      0 |      263 |  ETH |     0
      1 |      264 |  ETH |     1
     64 |        2 | OMCI |    16
============================================================
# diag gpon show ds-flow

Getting the VLANs bridged by the stick

The L2 table shows the learned MAC addresses with their VLAN (Vid): if the internet traffic arrives untagged on the router, this is a way to find which VLAN is used on the PON side^[3].

# diag l2-table get entry address valid

On the RTL9601D (e.g. ODI DFP-34X-2C2) the valid parameter is not available, the table has to be read entry by entry:

i=0
while [ $i -lt 2047 ]; do
    diag l2-table get entry address $i | grep -q "LUT" && diag l2-table get entry address $i
    i=$((i+1))
done

Getting the port status and the bandwidth limits

# diag port get status port all
Port Status Speed    Duplex TX_FC RX_FC
---- ------ -----    ------ ----- -----
0    Up     1000M    Full   Dis   Dis
2    Up     1000M    Full   Dis   Dis
# diag bandwidth get egress port all
# diag bandwidth get ingress port all

Getting/Setting Speed LAN Mode

Note

Before editing the speed make sure your hardware supports it.

To change the link mode use this command:

# flash get LAN_SDS_MODE
LAN_SDS_MODE=0
# flash set LAN_SDS_MODE 1

Value	cat /proc/kmsg	Mode	Behavior
1	<4>change mode to 1(Fiber 1G)	FIBER	1GbaseX with auto-neg on
2	<4>change mode to 2(SGMII PHY)	TP MII	1Gb PHY
3	<4>change mode to 3(SGMII MAC)	MII	1Gb MAC
4	<4>change mode to 4(HiSGMII PHY)	TP MII	2.5Gb PHY
5	<4>change mode to 5(HiSGMII MAC)	MII	2.5Gb MAC
6	<4>change mode to 6(2500BaseX)	FIBER	2500baseX with auto-neg on
7	<4>change mode to 7(SGMII Force)	TP	1GbaseT with auto-neg off

The 2.5G modes are 4 (HiSGMII PHY), 5 (HiSGMII MAC) and 6 (2500BASE-X): most of the hosts that support 2.5G work with the mode 6 and the port forced to 2500BASE-X, see the SFP standard page and the 2.5G compatibility list^[4].

WARNING

A LAN_SDS_MODE not supported by the host makes the stick unreachable: the only way to restore it is the serial console.

GPON/OMCI settings

Getting/Setting ONU GPON Serial Number

# flash get GPON_SN
GPON_SN=TMBB00000000
# flash set GPON_SN TMBB0A1B2C3D

Getting/Setting ONU GPON PLOAM password

Note

The PLOAM password is stored in HEX format, without any 0x or separators

From the firmware 220304 onwards only the HEX format is accepted via telnet/SSH (GPON_PLOAM_FORMAT set to 0): use the Web GUI to enter it in ASCII^[1:1].

# flash get GPON_PLOAM_PASSWD
GPON_PLOAM_PASSWD=41414141414141414141
# flash set GPON_PLOAM_PASSWD 41414141414141414141

Getting/Setting OMCI software version (ME 7)

Note

This needs either OMCI_OLT_MODE to be set to 3 and firmware version 220530 or 220923 as modded by @stich86 or, if you don't want to replace the installed firmware, set OMCI_OLT_MODE value to 21. This will force the stick to use your own settings from the XML file, but this is a hack and causes sigsegv of /bin/checkomci.

# nv setenv sw_custom_version0 YOURFIRSTSWVER
# nv setenv sw_custom_version1 YOURSECONDSWVER

Getting/Setting OMCI hardware version (ME 256)

# flash get HW_HWVER
HW_HWVER=V2.0
# flash set HW_HWVER MYHWVERSION

Getting/Setting OMCI vendor ID (ME 256)

# flash get PON_VENDOR_ID
PON_VENDOR_ID=ZTEG
# flash set PON_VENDOR_ID HWTC

Getting/Setting OMCI equipment ID (ME 257)

# flash get GPON_ONU_MODEL
GPON_ONU_MODEL=DFP-34X-2C2
# flash set GPON_ONU_MODEL DFP-34X-XXX

Getting/Setting OMCI OLT Mode and Fake OMCI

Configure how ONT Stick handle OMCI from OLT:

# flash get OMCI_OLT_MODE
OMCI_OLT_MODE=1
# flash set OMCI_OLT_MODE 2

Value	Note	OMCI Information
0	Default Mode	Stock setting, some values cannot be changed
1	Huawei OLT Mode	Huawei MA5671a
2	ZTE OLT Mode	ZTE
3	Customized Mode	Custom Software/Hardware Version, OMCC, etc...
21	Owerflow Mode	Custom Software/Hardware Version, OMCC, etc... (this is a hack and causes sigsegv of /bin/checkomci)

Some vendors/wholesale providers/ISPs have explicit LAN Port Number provisioning or proprietary OMCI that the stick cannot understand, this will make the stick reply OK to whatever the OLT sends it via OMCI.

0 = Disable, 1 = Enable, Default is 0

# flash get OMCI_FAKE_OK
OMCI_FAKE_OK=0
# flash set OMCI_FAKE_OK 1

Getting/Setting the OMCC version

The OMCC version (ME 257) advertised to the OLT, e.g. 128 (0x80) or 160 (0xA0):

# flash get OMCC_VER
OMCC_VER=128
# flash set OMCC_VER 160

Getting/Setting the OMCI traffic management option

How the OLT manages the upstream bandwidth (ME 256 Traffic management option): if the upload speed is lower than expected, try the other values^[5].

# flash get OMCI_TM_OPT
OMCI_TM_OPT=2
# flash set OMCI_TM_OPT 0

Value	Mode
0	Priority controlled
1	Rate controlled
2	Priority and rate controlled

Getting/Setting the VEIP slot ID

Some OLTs expect the VEIP (ME 329) with the same Entity ID of the original ONT, usually 0x0e01. The slot ID is the most significant byte of the Entity ID (0x0e = 14), and it is applied only if the bit 0x100 (cf_apply_customized_veip_slot_id) of OMCI_CUSTOM_ME is set: the default value on the SFU firmwares is 65536 (0x10000), so it must be set to 65792 (0x10100)^[6].

# flash set OMCI_VEIP_SLOT_ID 14
# flash set OMCI_CUSTOM_ME 65792

The other feature bits of OMCI_CUSTOM_ME have been documented by @rajkosto.

Getting/Setting the other identity values

Some OLTs (mostly the ones that accept any ONU, e.g. Fiberhome and Calix) also check other values of the original ONT^[1:2]:

Variable	Description	Example
OUI	Organizationally Unique Identifier of the original MAC address	875773
HW_SERIAL_NO	Hardware serial number (not the GPON serial number)	UONHUWH12341234123
ELAN_MAC_ADDR	MAC address of the stick, required by EPON	781735000000
HW_CWMP_MANUFACTURER	TR-069 manufacturer	Huawei Technologies Co., Ltd
HW_CWMP_PRODUCTCLASS	TR-069 product class	HG8240H
LOID, LOID_PASSWD	Logical ONU ID and password, used by EPON and some GPON ISPs

# flash set OUI 875773
# flash set HW_CWMP_MANUFACTURER 'Huawei Technologies Co., Ltd'

WARNING

Changing ELAN_MAC_ADDR requires a new MAC_KEY, see MAC key.

Getting/Setting the PON mode, device type and VLAN mode

Variable	Values
PON_MODE	1 GPON (default), 2 EPON, 3 Ethernet (the PON side works as an Ethernet fiber transceiver)
DEVICE_TYPE	0 bridge, 1 router, 2 hybrid
VLAN_CFG_TYPE	0 auto (from OMCI), 1 manual (uses VLAN_MANU_MODE)
VLAN_MANU_MODE	0 transparent, 1 tagging (Q-in-Q, the outer tag is removed), 2 remote access, 3 special case

Every flash set requires a reboot to be applied^[7].

Advanced settings

Setting management IP

# flash get LAN_IP_ADDR
LAN_IP_ADDR=192.168.2.1
# flash set LAN_IP_ADDR 192.168.1.1

Getting/Setting the L2 Bridge MTU

Note

Settings given via diag are not permanent after reboot

Getting/Setting the MTU of the L2 bridge

# diag switch get max-pkt-len port all
Port Speed
----------
0 1538
2 2031
# diag switch set max-pkt-len port all length 2000

Checking the currently active image

# nv getenv sw_active
sw_active=1
# nv getenv sw_version0
sw_version0=V1_7_8_210412
# nv getenv sw_version1
sw_version1=V1_7_8_210412

Booting to a different image

The firmware upgrade always writes the inactive image, so it is possible to go back to the previous firmware^[8]:

# nv setenv sw_commit 0|1
# nv setenv sw_active 0|1
# reboot

Factory reset

DANGER

Make a backup of the env, env2 and config partitions (see this guide) and write down ELAN_MAC_ADDR and the license key (MAC_KEY) before the reset: after it the stick uses the default MAC address, and a wrong key prevents the authentication to the OLT.

The configuration is stored in the config partition (/dev/mtd3), erasing it restores the default settings^[9]:

# flash_eraseall /dev/mtd3
# reboot

If the stick reboots in a loop, the reset-config-partition.sh script keeps trying until it can erase the partition via SSH.

Modifying the firmware

Warning

A wrong rootfs makes the image unbootable: always flash the inactive image, so that the stick can still boot the other one, and keep a backup of all the partitions.

Transferring files from/to the stick

Run md5sum on the source and on the destination to make sure that the file has not been corrupted.

Via SSH, from the stick to the PC and vice versa:

ssh admin@192.168.1.1 "cat /dev/mtd5" > mtd5.bin
cat rootfs.new | ssh admin@192.168.1.1 "cat > /tmp/rootfs.new"

Via TFTP (a TFTP server must be running on the PC):

# tftp <PC IP>
tftp> get rootfs.new
tftp> put <filename> <directory>
tftp> q

Via netcat (nc on the stick does not exit at the end of the transfer: stop it with CTRL+C)^[10]:

# on the stick
nc -l -p 12345 > /tmp/rootfs.new
# on the PC
nc 192.168.1.1 12345 < rootfs.new

Info

On Windows run the commands from cmd (not PowerShell) and replace cat with type.

Extracting and repacking the rootfs

The rootfs is a SquashFS (LZMA) image: on the stick it is in r0 (/dev/mtd5) for the image 0 and in r1 (/dev/mtd7) for the image 1, while the kernel is in k0 (/dev/mtd4) and k1 (/dev/mtd6).

Warning

Run both commands as root, otherwise the rootfs image might be damaged.

# unsquashfs mtd5.bin
# mksquashfs squashfs-root rootfs.new -b 131072 -comp lzma -no-recovery

The RTL960x emulator runs the extracted firmware in QEMU (qemu-user-static) to modify and test it before flashing it: any file in its custom folder is copied over squashfs-root when leaving the chroot, and the custom startup scripts go in /etc/init.d/rc35.

Flashing a new rootfs

Check which image is running (nv getenv sw_active): flash mtd6/mtd7 if the image 0 is running, mtd4/mtd5 if the image 1 is running. The following commands flash a new rootfs to the image 1 and boot it:

# flash_eraseall /dev/mtd7
# cat /tmp/rootfs.new > /dev/mtd7
# nv setenv sw_version1 NEW_SOFTWARE_VERSION
# nv setenv sw_commit 1
# reboot

If cat fails with cat: write error: Invalid Argument, write the image to the block device instead:

# flash_eraseall /dev/mtd7
# cat /tmp/rootfs.new > /dev/mtdblock7

Repacking a firmware upgrade file

The firmware upgrade files of the ODM firmwares (e.g. V-SOL, T&W, ODI) are a tar containing the kernel (uImage), the rootfs, the fwu.sh upgrade script, the fwu_ver version file and the md5.txt checksums: after replacing the rootfs, update the checksums and repack it, then upload it from the Web GUI firmware upgrade page^[10:1]:

tar -xf firmware.tar
mv rootfs.new rootfs
md5sum fwu.sh rootfs uImage fwu_ver > md5.txt
tar -cvf ../firmware-mod.tar *

The Firmware_Mod folder of the RTL960x repository contains the community patches for the ODI DFP-34X-2C2, V-SOL V2801F and T&W TWCGPON657 (Bootstrap Web GUI, VLAN, speed and software version fixes).

Known Bugs

• Auto-sensing mode to switch between SGMII/HiSGMII
• Slow upload with the 2.5G modes on some OLTs, see the DFP-34X-2C2 known bugs

Miscellaneous Links

• Hacking RTL960x
• RTL960x stick setup guide
• Asenheim firmware repository - alternative firmware collection for ODI/HSGQ, Alcatel/Nokia and Huawei modules
• Ditch ONU, use GPON SFP on Business Grade Router, Mikrotik/Ubiquiti/pfSense (Home Networking)
• For the new model ODI ZTE DFP-34X-C2C

---

1. RTL960x SFP xPON ONU Configuration Guide, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/StickSetup.md ↩︎ ↩︎ ↩︎

2. OMCI MIB, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/OMCI_CLI.md ↩︎

3. Diag, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/DIAG.md ↩︎

4. 2.5Gb Compatibility, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/2.5Gb.md ↩︎

5. Slow Upload Speed, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/SlowUploadSpeed.md ↩︎

6. OMCI_VEIP_SLOT_ID, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/VEIP.md ↩︎

7. flash get, flash set, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/FLASH_GETSET_INFO.md ↩︎

8. Firmware Partition, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/fw_part.md ↩︎

9. Factory Reset, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/factory_reset.md ↩︎

10. Modify firmware, Anime4000/RTL960x https://github.com/Anime4000/RTL960x/blob/main/Docs/Modify_Firmware.md ↩︎ ↩︎
